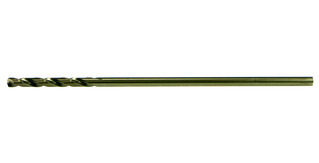

Extra Length 12" Length
Drill Bits Taps & Dies Series #0944-12-EXTDRL Listed in Product Catalog

Extra Length 12" Length

Engineering & Material Specs

135 Deg Premium Grade High Speed Steel Black Oxide
Heavy-Duty construction for portable or machine drilling in high tensile
strength alloy steels.

Made in USA

Line item minimum is $ 1.00
Order minimum is $ 15.00
Need a custom volume or bulk job quote?

Add specific sizes below or call Lakewood dispatch directly at (253) 582-1671.

FastTrack RFQ Form →

Size & Packaging Specification Matrix

Select your diameter, length, and packaging quantity below to stage in your FastTrack Quote.

Part Number Size / Dimensions / Description Per Case / Box FastTrack Quote
09440010 5/64 HHS 12" Long, 1" Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .0781
Flute length: 1
Overall length: 12"
 6 / Box
09440015 3/32 HHS 12" Long, 1-1/4 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .0938
Flute length: 1-1/4
Overall length: 12"
 6 / Box
09440020 7/64 HHS 12" Long, 1-1/2 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .1094
Flute length: 1-1/2
Overall length: 12"
 6 / Box
09440025 1/8 HHS 12" Long, 1-5/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .1250
Flute length: 1-5/8
Overall length: 12"
 6 / Box
09440030 9/64 HHS 12" Long, 1-3/4 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .1406
Flute length: 1-3/4
Overall length: 12"
 6 / Box
09440035 5/32 HHS 12" Long, 2" Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .1562
Flute length: 2
Overall length: 12"
 6 / Box
09440040 11/64 HHS 12" Long, 2-1/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .1719
Flute length: 2-1/8
Overall length: 12"
 6 / Box
09440045 3/16 HHS 12" Long, 2-5/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .1875
Flute length: 5-5/16
Overall length: 12"
 6 / Box
09440050 13/64 HHS 12" Long, 2-7/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2031
Flute length: 2-7/16
Overall length: 12"
 6 / Box
09440055 7/32 HHS 12" Long, 2-1/2 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2188
Flute length: 2-1/2
Overall length: 12"
 6 / Box
09440060 15/64 HHS 12" Long, 2-5/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2344
Flute length: 2-5/8
Overall length: 12"
 6 / Box
09440065 1/4 HHS 12" Long, 2-3/4 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2500
Flute length: 2-3/4
Overall length: 12"
 6 / Box
09440070 17/64 HHS 12" Long, 2-7/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2656
Flute length: 2-7/8
Overall length: 12"
 6 / Box
09440075 9/32 HHS 12" Long, 2-15/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2812
Flute length: 2-15/16
Overall length: 12"
 6 / Box
09440080 19/64 HHS 12" Long, 3-1/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .2969
Flute length: 3-1/16
Overall length: 12"
 6 / Box
09440085 5/16 HHS 12" Long, 3-3/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .3125
Flute length: 3-3/16
Overall length: 12"
 3 / Box
09440090 21/64 HHS 12" Long, 3-5/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .3281
Flute length: 3-5/16
Overall length: 12"
 3 / Box
09440095 11/32 HHS 12" Long, 3-7/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .3439
Flute length: 3-7/16
Overall length: 12"
 3 / Box
09440100 23/64 HHS 12" Long, 3-1/2 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .3594
Flute length: 3-1/2
Overall length: 12"
 3 / Box
09440105 3/8 HHS 12" Long, 3-5/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .3750
Flute length: 3-5/8
Overall length: 12"
 3 / Box
09440110 25/64 HHS 12" Long, 3-3/4 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .3906
Flute length: 3-3/4
Overall length: 12"
 3 / Box
09440115 13/32 HHS 12" Long, 3-7/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .4062
Flute length: 3-7/8
Overall length: 12"
 3 / Box
09440120 27/64 HHS 12" Long, 3-15/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .4219
Flute length: 3-15/16
Overall length: 12"
 3 / Box
09440125 7/16 HHS 12" Long, 4-1/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .4375
Flute length: 4-1/16
Overall length: 12"
 3 / Box
09440130 29/64 HHS 12" Long, 4-3/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .4531
Flute length: 4-3/16
Overall length: 12"
 3 / Box
09440135 15/32 HHS 12" Long, 4-5/16 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .4688
Flute length: 4-5/16
Overall length: 12"
 3 / Box
09440140 31/64 HHS 12" Long, 4-3/8 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .4844
Flute length: 4-3/8
Overall length: 12"
 3 / Box
09440145 1/2 HHS 12" Long, 4-1/2 Flute Length 135 Deg. Aircraft Extension Drill
Decimal equivalent: .5000
Flute length: 4-1/2
Overall length: 12"
 3 / Box
